Cinema Hybrid 5730 12V-24V-48V dirije Flex Panel 360LEDs
video

Cinema Hybrid 5730 12V-24V-48V dirije Flex Panel 360LEDs

Cinema Hybrid 5730 12V-24V-48V dirije Flex Panel 360LEDs
● 360leds / pcs ak DC12V / 24V / 48V konsepsyon;
● Dimansyon 480 × 240mm ak gwosè minimòm cuttable 80 × 48mm pou 12V / 24V ak 160 × 48mm pou 48V;
● Konsepsyon Checkboard pou distribisyon ekleraj menm;
● Cinema quality 5730 SMD with Ra>95, R1-R15>90,TLCI>95;
● Pafè pou ekleraj estidyo pwofesyonèl-ak segondè-ekleraj aksan pou fim, fotografi, mòd, atizay, ekleraj, elatriye;
Voye rechèch
Rale dosye

Dekri teren

Karakteristik teknik



biaozhi

A
Cinema Hybrid 5730 12V/24V/48V LED Flex Panel 360leds deskripsyon

Cinema Hybrid Cuttable 5730 Flexible LED Light Panel 360leds/pcs is one of the most popular series in the Flexible Panel family. For the 360leds/pcs flex panel use tungsten/flame combined with daylight sources CCT from 2000K with 10000K and among, high CRI 95+, with full spectrum R1-R15 all above 90, all TLCI>95, ki ofri koulè reyèl reyèl epi ba ou yon repwodiksyon koulè enkwayab. Lè w itilize kontwolè pwofesyonèl segondè frekans ou a oswa dekodeur DMX apwovizyone nan GLU Lighting, li ka reyalize tout CCT ant.Cuttable ak DC12V, DC24V ak DC48V ak ang vi 120 degre pèmèt pou mou, menm pwodiksyon menm nan distans fèmen. Ekstrèmman vrsatile, lejè-pwa, koulè- kòrèk, ak ekonomik fè tout LED Mat sa yo yon hit ak sinematograf ak DOP yo sanble.

Karakteristik kle
b





Travay vòltaj

Cinema Hybrid 5730 12V-24V-48V LED Flex Panel 360LEDs yo fèt ak tou de DC12V, DC24V ak DC48V pou aplikasyon diferan.



c





dimansyon deskripsyon an

Dimansyon Cinema Hybrid 5730 12 V-24V-48V dirije Flex Panel 360LEDs vini ak dimansyon 480 × 240mm pou gwosè estanda, epi tou nou ka fè panno Customized ak gwosè diferan pou lajè anba a 300mm.

d





Fleksib ak cuttable

Cinema Hybrid 5730 12 V-24V-48V LED Flex Panel 360LEDs la fleksib ak koupe, ak gwosè minimòm koupe 80 × 48mm pou DC12V ak DC24V verion ak 160 × 48mm pou DC24V vèsyon.

e





Layout tablo chèk

Led yo pou Tungstène ak Daylight pou Cinema Hybrid 5730 12 V-24V-48V ki ap dirije Flex Panel 360LEDs yo ak Layout tablo, sa ki fè panèl limyè a ak menm distribisyon limyè.

f





KALITE SINEMA 5730SMD

Cinema quality 5730 SMD LED are used for light source, with Ra>95, R1-R15>90, ak valè TLCI pi wo pase 90. Pi gwo 22 * ​​35mil chip yo itilize fè Cinema Hybrid 5730 12 V-24V-48V dirije Flex Panel 360LEDs ak pwodiksyon lumèn segondè ak efikasite limyè segondè.

g





lajè ranje cct chwazi

Pou Cinema Hybrid 5730 12V-24V-48V dirije Flex Panel nou an 360LEDs nou ofri Tungstène soti nan CCT 2000K a 3200K, ak Daylight soti nan 5000K a 10000K, ak pou estanda nou ofri 2800K pou Tungstène ak 5600K ak 6500K pou lajounen.

h





UL ki nan lis ak CE sètifye

Cinema Hybrid nou an 5730 12 V-24V-48V dirije Flex Panel 360LEDs yo UL/CUL ki nan lis ak dosye No E495503 pou North Amercia ak CE sètifye ak RoHS Konfòme pou Ewòp.

Detay pwodwi
c
3oz PCB
OurCinema Hybrid 5730 12 V-24V-48V LED Flex Panel 360LEDs vini ak pi epè PCB 3oz, ak pi bon chalè chalè dissipation ak pi bon konduktivite.
   D
Pi epè Fil
Nou itilize fil pi epè ak 18AWG 3PIN fil fè pou Cinema Hybrid 5730 12 V-24V-48V dirije Flex Panel 360LEDs nou an, ki asire gout nan vòltaj ki ba ak kapasite aktyèl pote.
e
Backadhesive
Vize pou enstalasyon pi fasil, nou itilize backadhesive 3M 9080HL pou estanda, epi tou 3M VHB ak TESA backadhesive ki disponib pou chwa.

SPEKTRE CRI AK LONGÈ DONN POU 5730 TUNGSTEN AK LIMIÈ LAJOU
i

5730 Tungstène koulè 2800K

CCT 2837K

(CCT Range 2700-2900K)

Ra=97.1

TLCI=98.2

5730 tungstène Koulè 3200K

CCT 3101K

(CCT Range 3100-3300K)

Ra=98

TLCI=97.1

3100
5600

Koulè lajounen 5600K

CCT 5597K

(CCT Range 5300-5700K)

Ra=97.1

TLCI=98.2

Koulè lajounen 6500K

CCT 6471K

(CCT Range 6400-6700K)

Ra=98.0

TLCI=97

6500



dimansyon pwodwi

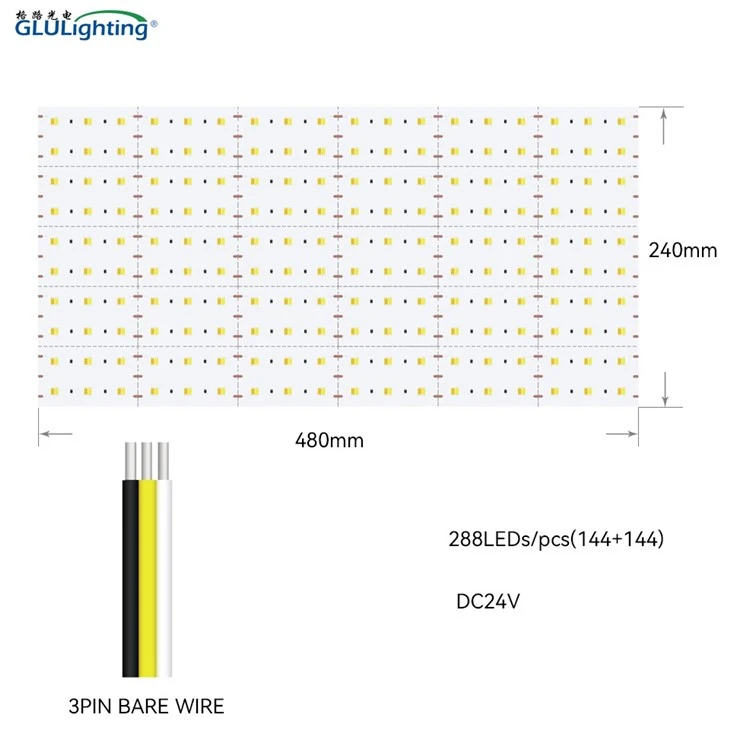

Cinema Hybrid 5730 12V-24V-48V LED Flex Panel 360LEDs nou ofri DC12V, DC24V ak DC48V vèsyon, tout vini ak 480 * 240mm, ak pou 12V ak 24V se cuttable nan 80 × 48mm (3.15 × 1.89in.), se koupe nan 48V vèsyon. 160 × 48mm (6.3 × 1.89in.)

SIZE

Anbalaj pwodwi

PACKING

Poukisa Chwazi nou

Why choose us

Pwodwi akseswa

Nou ofri diferan akseswa pou panèl flex nou an, epi ou ka jwenn yon sèl -esperyans achte nan men nou pou satisfè egzijans diferan pwojè ou yo.

Kisa nou ofri?

ACCESSORIES-ALL

Sètifikasyon pwodwi

Pou panèl nou an nou gen UL/CUL ki nan lis ak nimewo dosye E495503 pou North Amercia, ak CE, ROHS pou Eurpoe.

Certification

Aplikasyon pou pwodwi

Pou Cinema Hybrid 5730 Flexible LED Light Panel, ki fèt yo dwe itilize pou fim, televizyon, ekleraj ak tout kote yon dezi pou bon jan kalite ekleraj nesesè. Avèk koulè rich ki disponib epi yo kokenn nan espas ki sere ak pou tire sou kote. Ekstrèmman vrsatile, limyè-wight, koulè-kòrèk, ak ekonomik fè panno LED CCT fleksib sa yo yon hit ak sinematograf ak DOP yo sanble. Se konsa, pou tout seri panèl yo apwopriye ak lajman itilize pou fim, televizyon, estidyo, estidyo fotografi, estidyo nouvèl, montre vivan, tire komèsyal, ekleraj elatriye.

APPLICATION

Baj popilè: sinema hybrid 5730 12v-24v-48v dirije panèl flex 360leds, Lachin, manifaktirè, founisè, faktori, Customized


paramèt teknik pwodwi

Voltage

12
24
48

Paramètr debaz

Kòd pwodwi GLUB12CV424L0700BI03W360C3 GLUB24CV424L0700BI06W360C3 GLUB48CV424L0700BI12W360C3
Pati No. GLU-P2L0700BI360-12V GLU-P2L0700BI360-24V GLU-P2L0700BI360-48V
Ranje vòltaj DC8-13V DC18-26V DC31-50V
Ki ap dirije Kalite 5730 SMD 5730 SMD 5730 SMD
Kte ki ap dirije 360pcs (180pcs chak pou tengstèn ak lajounen) 360pcs (180pcs chak pou tengstèn ak lajounen) 360pcs (180pcs chak pou tengstèn ak lajounen)
Koulè Bi-koulè/CCT/Ibrid Bi-koulè/CCT/Ibrid Bi-koulè/CCT/Ibrid
CCT tipik 2800K+6500K 2800K+6500K 2800K+6500K
CCT Customized pou Tungstène 2000-3200K 2000-3200K 2000-3200K
CCT Customized pou lajounen 5600-10000K 5600-10000K 5600-10000K
Kouran annavan (Max.)

5A (UL/CUL Standard)

6.67A (CE Creole)

 3.33A 1.68A
Puissance avanse (Max.)

60W (UL/CUL Creole)

80W (CE Creole)

 80W 80W
CRI tipik 95+ 95+ 95+
Tipik R1-R15 90+ 90+ 90+
TLCI tipik 95+ 95+ 95+
View Angle 120 degre 120 degre 120 degre
Koneksyon (estanda) 3PIN Bare fil 3PIN Bare fil 3PIN Bare fil
Enstalasyon

3M 9080HL pou estanda

(Lòt yo ka Customized)

3M 9080HL pou estanda

(Lòt yo ka Customized)

3M 9080HL pou estanda

(Lòt yo ka Customized)

Karakteristik dimansyon

Dimansyon pwodwi

L480×W240×H1.2mm

L480×W240×H1.2mm

L480×W240×H1.2mm
Dimansyon pwodwi L18.9×W9.45×H0.047in. L18.9×W9.45×H0.047in. L18.9×W9.45×H0.047in.
Epesè Copper 3oz (1oz+2oz) 3oz (1oz+2oz) 3oz (1oz+2oz)
Min. Koupe Inite 80 × 48mm (3.15 × 1.89in.) 80 × 48mm (3.15 × 1.89in.) 160 × 48mm (6.3 × 1.89in.)

Karakteristik optik

Pati No.



GLU-P2L0700BI360-12V

 GLU-P2L0700BI360-24V GLU-P2L0700BI360-48V
Koulè Tengstèn (WW) Lajounen (W) Tengstèn (WW) Lajounen (W) Tengstèn (WW) Lajounen (W)
CCT tipik 2800K(2700-2900K) 6500K(6300-6700K) 2800K(2700-2900K) 6500K(6300-6700K) 2800K(2700-2900K) 6500K(6300-6700K)
Konsomasyon pouvwa

30W (UL Creole),

40W (CE Creole)

30W (UL Creole),

40W (CE Creole)

 40W 40W 40W 40W
Pwodiksyon lumèn 2480lm (UL Creole), 3150lm (CE Creole) 2840lm (UL Creole), 3730lm (CE Creole) 3150lm 3730lm 3150lm 3730lm
SDCM <3 <3 <3
Garanti 3 zan 3 zan 3 zan

Nòt: 1. Tolerans lumèn fux ak pouvwa se ± 10% akòz diferans pou ekipman tès la.

2. Paramèt yo ka chanje san avètisman davans.
